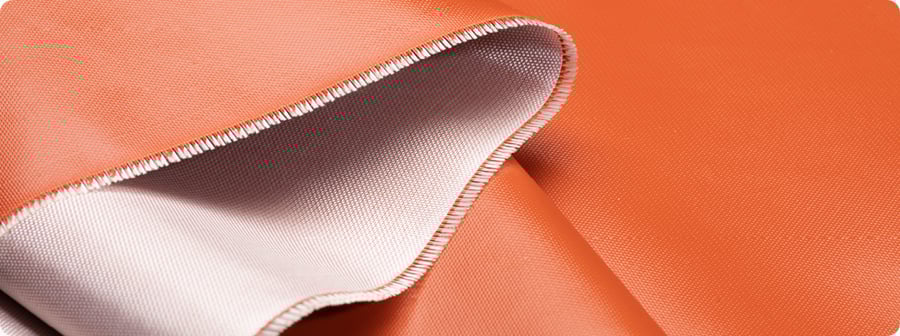

Fabri Cote Reinforced Sheeting

Fabri Cote has been the leader in precision coating processes for over five decades, manufacturing the highest quality custom, rubber-coated fabrics and elastomers for a wide range of applications. Since our beginnings in 1970, we have worked closely with aeronautics manufacturers to develop cutting-edge products, priding ourselves on being their go-to development resource.

Resources Fabri Cote Image


As a product line of Fenner Precision Polymers, a Michelin Group company, Fabri Cote is backed by 100 years of manufacturing, technical, and commercial expertise in our industry. Fabri Cote continues to develop and expand various coating processes to improve and extend our range of products.

Industries and Applications


  • select_check_box Aerospace
  • select_check_box Transportation
  • select_check_box Construction
  • select_check_box Consumer Equipment
  • select_check_box Personal Protective Equipment

Features and Benefits


  • double_arrow Weight - Our precision coated fabrics optimize strength while minimizing weight, making it ideal for critical applications.

  • double_arrow Flammability - Designed and formulated to meet strict flammability requirements, including FAR 25.853.

  • double_arrow Wide Temperature Range - Coated fabrics capable of performing in the most demanding temperature applications (-60°F – 425°F).

  • double_arrow Customization - Coated fabrics available in a range of substrates, rubber coatings, thicknesses, and fabric widths or customized to your exact specification.

Fabri Cote cured or uncured coated fabrics are engineered into an array of products by our customers, ranging from seals and gaskets, diaphragms, flexible hoses and ducting, specialty aerospace shapes, fire barriers, and shield coverings to personal protective equipment. These products are utilized within critical applications in highly regulated industries such as Aerospace, Automotive, Construction, and Transportation.


Material Selection


FABRICS


  • done_all Aluminized Fiberglass
  • done_all Corolon
  • done_all Cotton
  • done_all Fiberglass
  • done_all Kevlar
  • done_all Nextel
  • done_all Nomex
  • done_all Nylon
  • done_all Polyester
  • done_all Quartz
  • done_all Silica

ELASTOMERS


  • done_all Butyl
  • done_all Conductive Silicone
  • done_all EPDM
  • done_all Fluorosilicone
  • done_all Natural Rubber
  • done_all Neoprene
  • done_all Nitrile
  • done_all Pressure Sensitive
  • done_all Adhesives
  • done_all Silicone
  • done_all Viton

Accreditations and Standards


Fabri Cote is certified to AS9100D and ISO 9001:2015, allowing us to meet requirements for aviation, space, and defense organizations like DoD, NASA, and the FAA, as well as major aerospace manufacturers.

Fabrics Specified to:


  • done_all MIL-C-12369
  • done_all MIL-C-20696 Type 1 and Type 2
  • done_all MIL-Y-1140 H Class C Form 4


Coated Fabrics Specified to:


  • done_all AMS 3315
  • done_all BMS 9-27
  • done_all BSS 7230
  • done_all DMS 1867
  • done_all DMS 1953 Type 1, 2, and 3
  • done_all FAR 25.853
  • done_all LAC-C21-1023
  • done_all MIL-C-24576
  • done_all NFPA 701
  • done_all P1000-1
  • done_all P5209-2
  • done_all PS 14057 and PS 14059
  • done_all 151-029-1
  • done_all 151-029-3
  • done_all 151-029-5

Elastomers Specified to:


  • done_all A-A-59588
  • done_all BMS 1-57
  • done_all BMS 1-72
  • done_all BMS 1-74
  • done_all AMS-3325
  • done_all MIL-R-6855
  • done_all MIL-R-25988
  • done_all MIL-R-83248
  • done_all UL & FAR 25.853 Compliant
